Trust Model¶

Signing chain¶

---

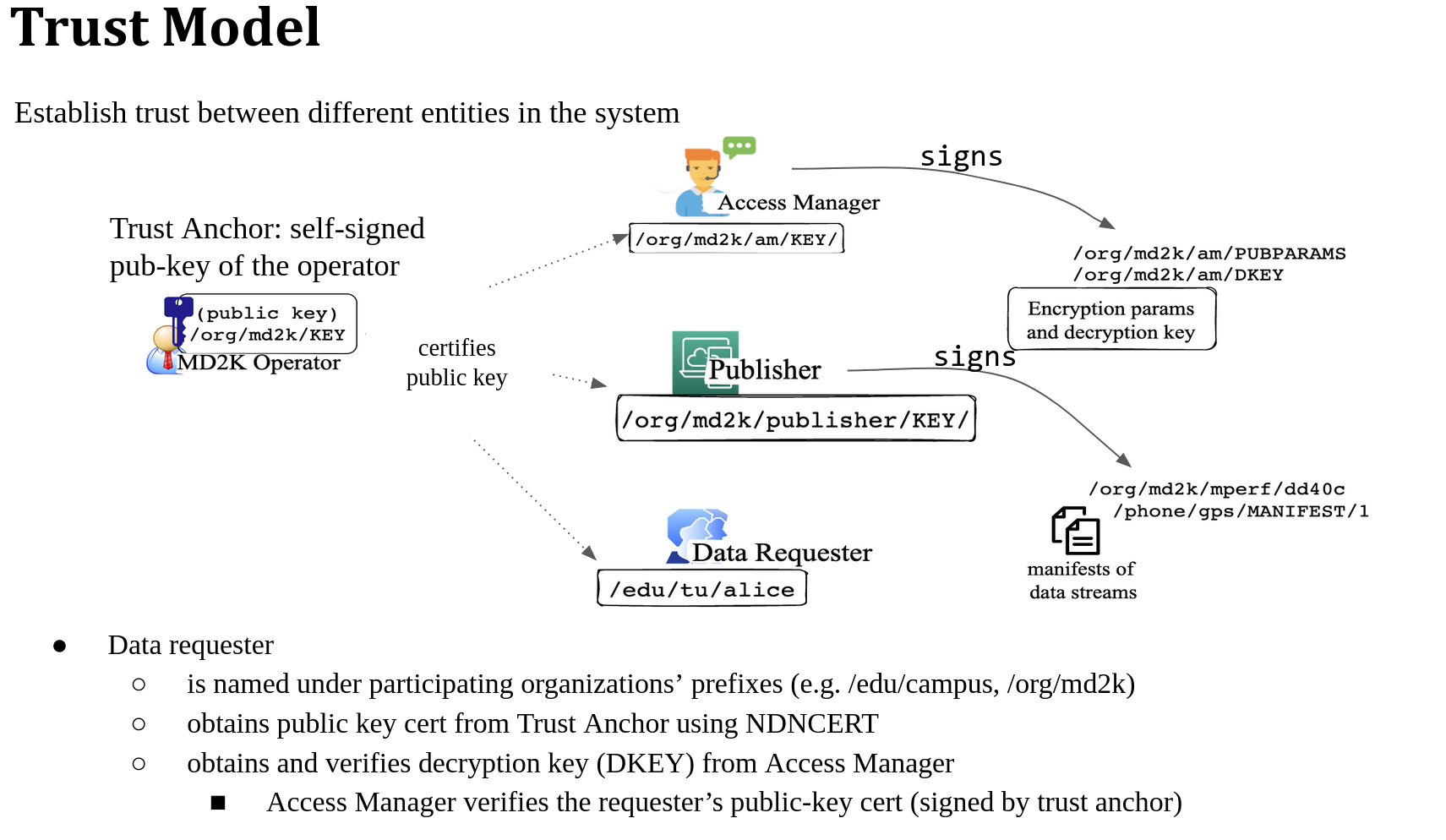

Trust Model¶

---

Component identities¶

Root / Site CA¶

Identity: /ndn/md2k
Type: Self-signed root CA
Trust Anchor: md2k-trust-anchor.ndncert

All components ultimately chain to this root.Consumers load this file so they can trust any certificate issued under /ndn/md2k.

Identities Signed by the Root CA

The root /ndn/md2k signs:

• /ndn/md2k/mguard/controller
• /ndn/md2k/mguard/aa
• /ndn/md2k/mguard/dd40c (producer)
• All consumer identities (example: /ndn/md2k/adam)

Defines the trust boundary.​

---

Controller (/ndn/md2k/mguard/controller)​¶

• Signs POLICYDATA. ​
• Issues policy decisions (who can access what).​
• Does not decrypt or validate ABE content.

Attribute Authority (AA) (/ndn/md2k/mguard/aa)​¶

• Signs PUBPARAMS.​
• Generates and signs ** DKEYs** (consumer ABE private keys).​
• Only entity holding ABE master secret.​

---

Producer (/ndn/md2k/mguard/dd40c)​¶

Signs and serves stream certificates.​

The producer identity /ndn/md2k/mguard/dd40c signs all stream identities:

• /ndn/md2k/mguard/dd40c/phone/accelerometer
• /ndn/md2k/mguard/dd40c/phone/gyroscope
• /ndn/md2k/mguard/dd40c/phone/gps
• /ndn/md2k/mguard/dd40c/phone/battery
• /ndn/md2k/mguard/dd40c/data_analysis/gps_episodes_and_semantic_location

These stream identities are used to sign manifests, encrypted DATA, and CK packets.

Producer validates:

• AA public parameters (/aa/PUBPARAMS)

Publishes:​

• Encrypted DATA (digest-signed for NAC-ABE)​
• CK Data (digest-signed)​
• MANIFESTS (RSA-signed)​

Producer serves:

• Producer certificate

• All stream certificates


---

Stream Identities (/ndn/md2k/mguard/dd40c/phone/…)​¶

• Used to sign RSA-signed objects (manifest).​
• metadata, DATA, CK(handled by nac-abe)​
• Each stream has its own identity and cert.

---

Consumer (e.g./ndn/md2k/adam)​¶

Consumer validates:

• AA parameters (RSA)
• DKEY segments (RSA)
• Controller POLICYDATA (RSA)
• Stream manifests (RSA)
• CK packets (digest)
• Encrypted data segments (digest)

All rules validated using the consumers trust schema.

Consumer decrypts:

1. Encrypted application DATA → extract CK name

2. Fetch CK → decrypt with DKEY

3. Decrypt DATA using CK

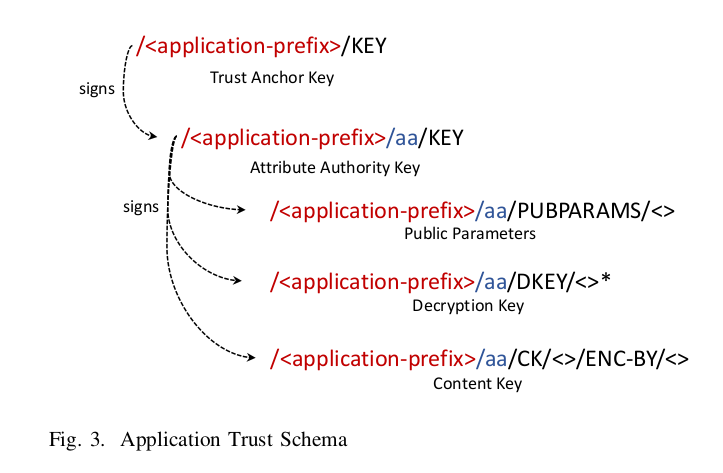

The consumer uses three rules:

1. AA public parameters and DKEY validation

   /ndn/md2k/mguard/aa/* signed by AA (RSA), chaining to root.

2. Controller POLICYDATA replies

   /ndn/md2k/mguard/controller/* signed by controller (RSA), chaining to root.

3. Stream and producer content

   /ndn/md2k/mguard/dd40c/*

   Allows:

   • sha256 (digest) for encrypted DATA, CK, metadata

   • rsa-sha256 for manifests, stream certs
     KeyLocator must be a prefix of the Data name.

All validations ultimately chain back to /ndn/md2k.
